The Waaree Radiance Lite 3kW On-Grid Solar Kit is a premium, plug-and-play rooftop solar solution designed for residential and small commercial applications. This comprehensive kit includes six high-efficiency Waaree 560–580Wp bifacial solar panels, a 3kVA single-phase inverter, and all necessary accessories for seamless installation and operation.

Key Features:

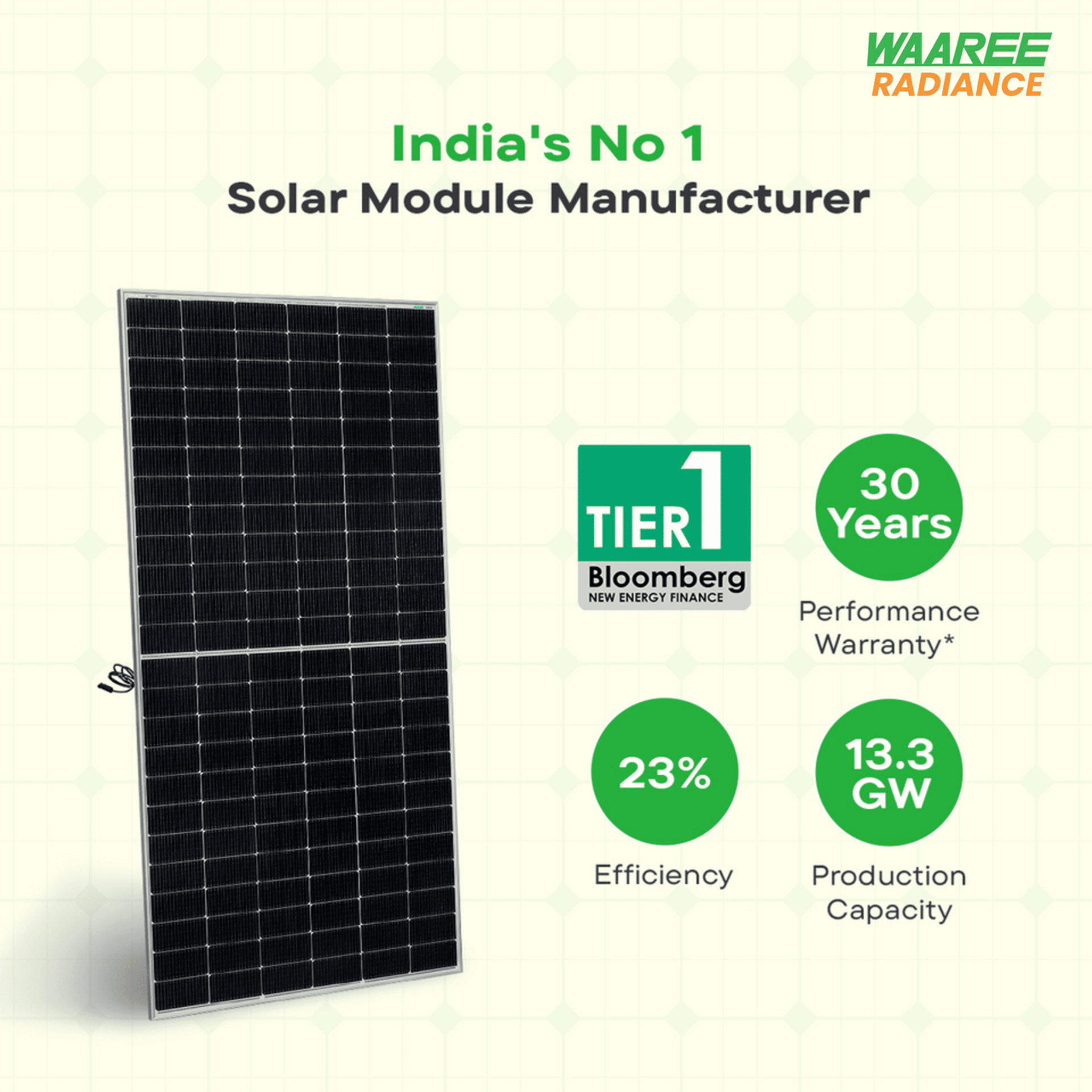

• High-Efficiency Panels: Six Waaree 560–580Wp bifacial solar modules (BiN-08 series) for optimal energy generation.

  • Advanced Inverter: 3kVA single-phase inverter (Gen4 series) for reliable power conversion.

  • Protective Components: DCDB and ACDB with surge protection devices (SPD) and MCBs for system safety.

  • Earthing Kit: Comprehensive earthing system including rods, chamber, and chemical fill for enhanced protection.

  • Connectors & Cables: MC4 compatible connectors and 4-core flexible copper cables for secure and efficient wiring.

    Specifications:

    • System Capacity: 3kW

    • Phase: Single-Phase

    • Panel Type: Bifacial, Mono PERC

    • Inverter Capacity: 3kVA

    • Warranty: 10 years on panels, 5 years on inverter

    Ideal For:

    • Residential rooftops

    • Small commercial establishments

    • Areas with access to net metering

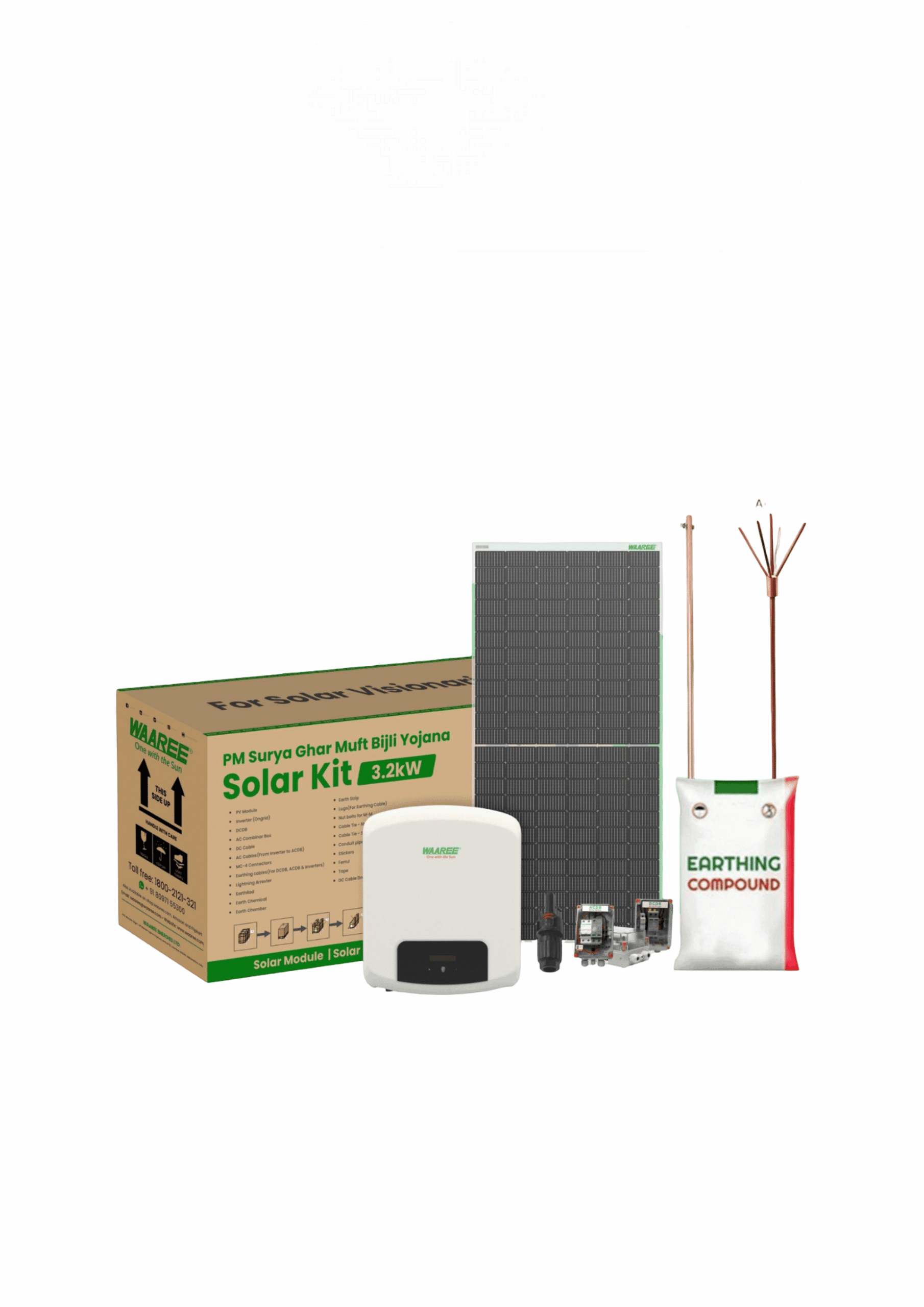

      Sr. No.	Specification	Qty.
      1	BiN-08-560/565/570/575/580 (DCR) 560/565/570/575/580Wp Solar Panels	6
      2	WS On Grid 1 Phase Inverter 3 KVA-Gen4 3kVA	1
      3	DCDB 1-6 KW (1 in 1 out) with SPD 600V (Finder) & Fuse 25A 1000V DC & Fuse Holder (Mersen)	1
      4	ACDB 1-6 KW with Indicator 1 Phase SPD 1+1 (Finder), 25/32A 2P AC MCB (Schneider)	1
      5	MC4 Compatible Connectors (Pair)	4
      6	Lightning Arrestor 1M 5 Spikes B.P.-FRP Cu 80 Micron Conventional	1
      7	Earth Rod L-1M D-14 mm Cu 250 Micron	3
      8	350 mm Dia FRP Earth Pit Chamber with Cover	3
      9	25kg Earthing Chemical Fill	1

How to Buy:

• Follow the step-by-step process outlined below to purchase your product.

Step 1 (Day 1):

• Choose your desired product variant according to your requirements.
• Pay the listed price to complete the booking.

Step 2 (Days 2-6):

• Waaree will ensure that an authorized partner connects with you to proceed with the following:
• Collect necessary documents for verification.
• Conduct a site visit.
• Share a quotation for installation charges, liasoning fees, and any cost of Structure.

Step 3 (Days 7-20):

• Enjoy a stress-free installation process facilitated by the authorized partner.
• Pay the installation and other associated charges to the authorized partner.

Step 4 (Days 7-15):

• Once the installation charges are settled, Waaree will ship the product to your doorstep.

Cancellation Policy:

• If you are not satisfied with the installation charges:
• Before shipping the products, you can cancel the order.
• A site visit charge of Rs. 500 will be deducted from the refund.
• Once product shipped, it cannot be cancelled.

Important Notes:

• Subsidy eligibility is subject to assessment.
• Waaree is solely responsible for the product itself.
• Installation and maintenance will be carried out by the authorized installer only
• Waaree will be not be responsible for installation.
• Structure & Installation Charges Not Included

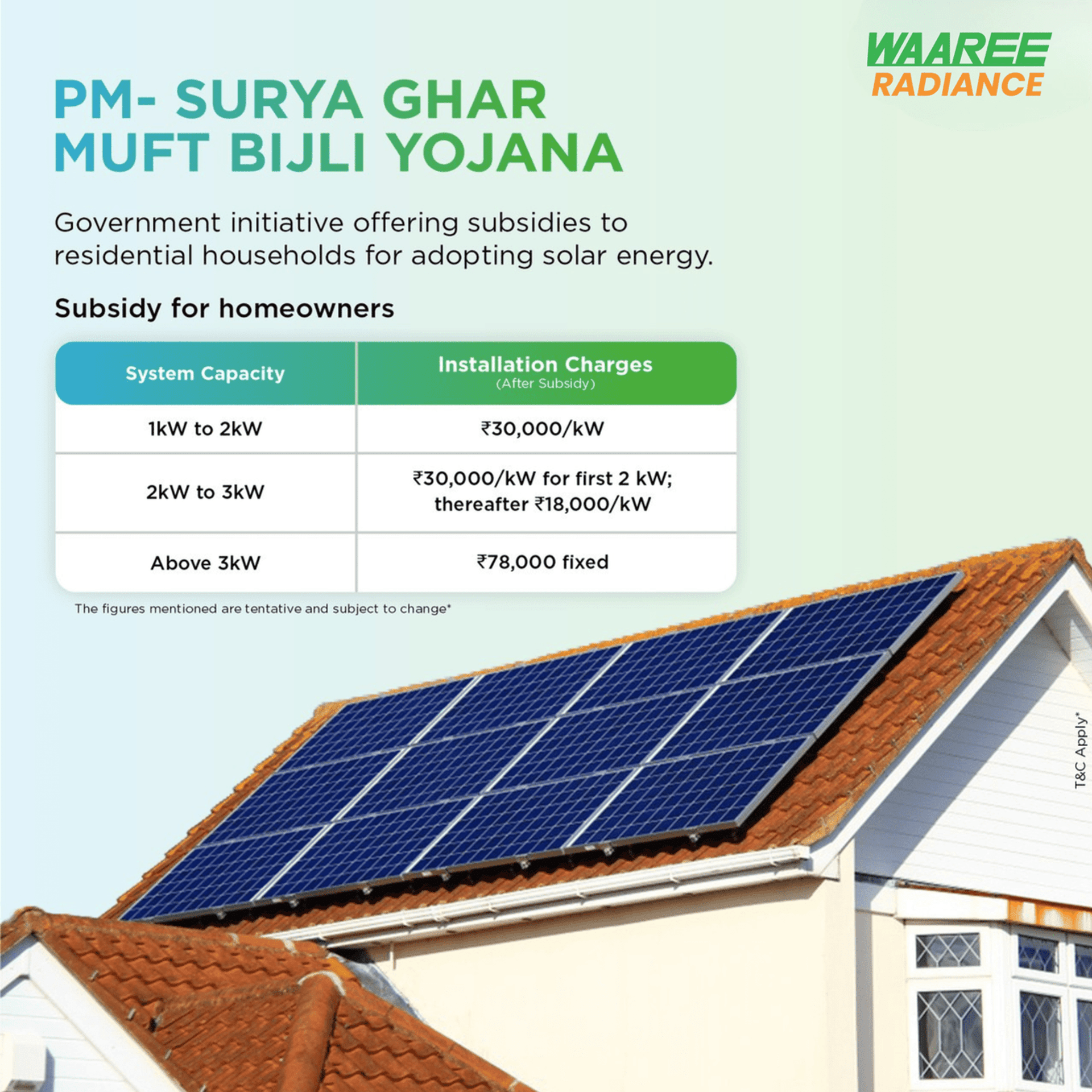

How to Claim Subsidy:

Step 1

• Register in the portal with the following
• Select your State & Electricity Distribution Company
• Enter your Electricity Consumer Number, Mobile Number & Email

Step 2

• Login with Consumer Number & Mobile Number
• Apply for the Rooftop Solar as per the form

Step 3

• Once you get the feasibility approval, get the plant installed by any of the registered vendors in your DISCOM

Step 4

• Once installation is completed , submit the plant details and apply for net meter

Step 5

• Commissioning certificate will be generated from the portal, after installation of net meter and inspection by DISCOM

Step 6

• Once you get the commissioning report. Submit the bank account details and a cancelled check through the portal. You will receive your subsidy in your bank account within 90 days.
