WAAREE Radiance 4.5 kW On Grid Single Phase Bifacial Topcon DCR Solar Kit

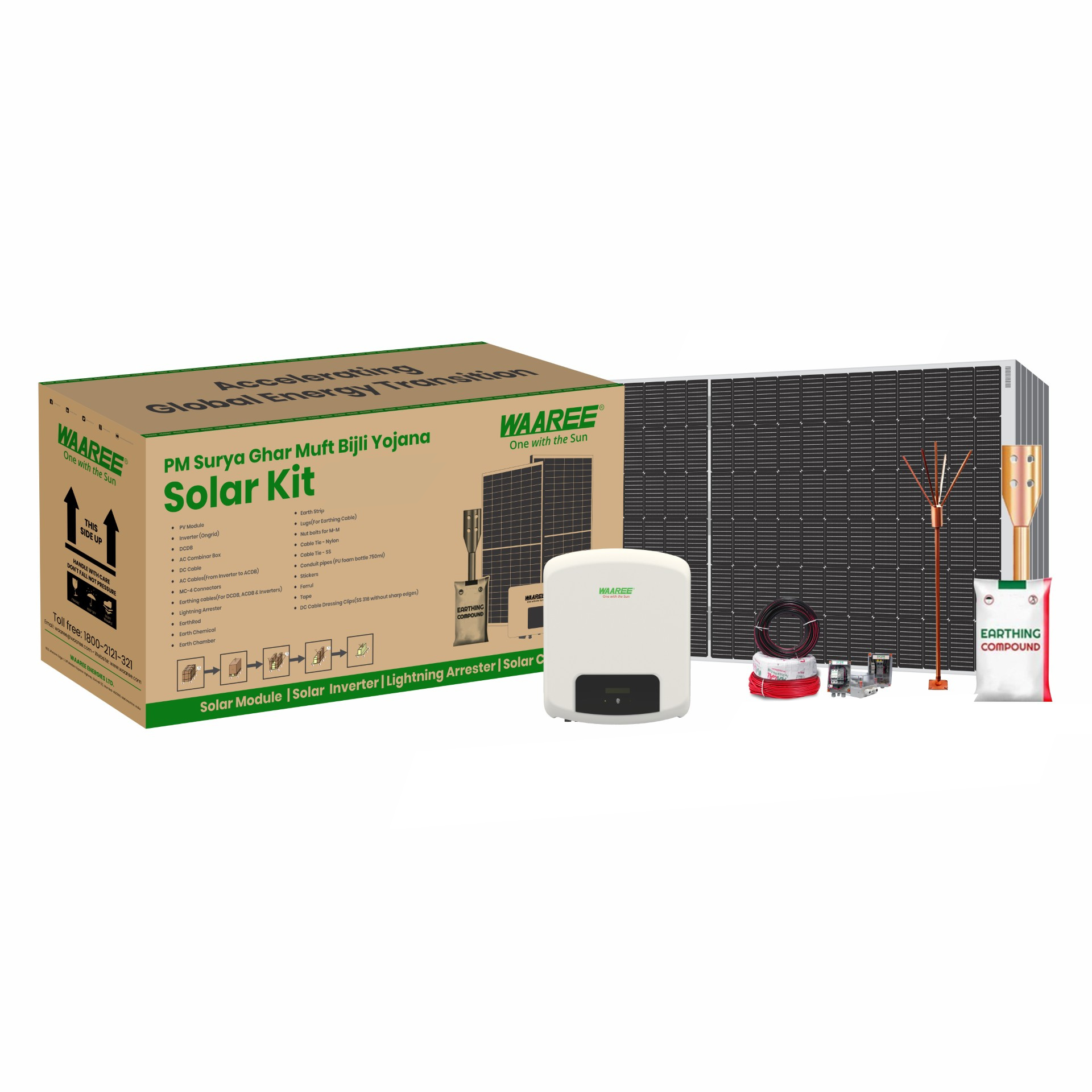

The potential of renewable energy with the WAAREE Solar 4.5 – 4.8 kW On-Grid Solar System (Single Phase). Ideal for both residential and commercial settings, this system offers a sustainable solution to power your property with clean solar energy. Featuring a robust design and high-quality components, this on-grid solar system ensures reliable performance and seamless integration with existing electrical infrastructure. With a capacity of 4.5kW, it’s capable of meeting the energy needs of households and small businesses alike. Designed for easy installation, this system comes with everything you need, including a high-performance string inverter, array junction box, AC distribution box, DC and AC cables, lightning arrestor, earthing kit, and MC-4 connectors. This comprehensive kit makes setting up your solar power system a breeze. By harnessing the power of the sun, you can significantly reduce your electricity bills while minimizing your carbon footprint. Enjoy the benefits of renewable energy while contributing to a cleaner and more sustainable future for generations to come. Invest in the WAAREE Solar 4.5kW On-Grid Solar System for reliable, efficient, and environmentally friendly energy solutions for both residential and commercial applications.
Important Notes:
- Subsidy eligibility is subject to assessment.
- Waaree is solely responsible for the product itself.
- Installation and maintenance will be carried out by the authorized installer only
- Waaree will be not be responsible for installation.
- Structure & Installation Charges Not Included
How to Claim Subsidy:
Step 1
- Register in the portal with the following
- Select your State & Electricity Distribution Company
- Enter your Electricity Consumer Number, Mobile Number & Email
Step 2
- Login with Consumer Number & Mobile Number
- Apply for the Rooftop Solar as per the form
Step 3
- Once you get the feasibility approval, get the plant installed by any of the registered vendors in your DISCOM
Step 4
- Once installation is completed , submit the plant details and apply for net meter
Step 5
- Commissioning certificate will be generated from the portal, after installation of net meter and inspection by DISCOM
Step 6
- Once you get the commissioning report. Submit the bank account details and a cancelled check through the portal. You will receive your subsidy in your bank account within 90 days.
| Sr. No. | Component | Specification | Qty. |
|---|---|---|---|
| 1 | PV Module | BiN-08-560/580/585 (TopCON DCR) | 8 |
| 2 | Inverter (On grid) | WS On Grid 1 phase Inverter 4.5 KVA-Gen4 | 1 |
| 3 | DCDB | DCDB 1-6 KW (1 in 1 out) With SPD 600V (Finder) & MCB 32 A | 1 |
| 4 | ACDB | ACDB 1-6 KW with Indicator 1 Phase SPD 1+1 (Finder), 25/32A 2P AC MCB (Schneider) | 1 |
| 5 | DC Cable | 1C, 4 Sqmm Cu. XLPO DC Cable – Red | 30 |
| 6 | DC Cable | 1C, 4 Sqmm Cu. XLPO DC Cable – Black | 30 |
| 7 | AC Cables (From Inverter to ACDB) | 2C, Cu. Flexible cable 4 Sqmm | 20 |
| 8 | MC-4 Connectors | MC4 Compatible connectors (Pair) | 4 |
| 9 | Lighting Arrestor | Conventional type LA 1.1m high LA HDG (minimum 80-micron) | 1 |
| 10 | Earthing kit (Earth Rod) | Earthing Rod with 1.5m long Copper bonded electrode 14 mm dia (minimum 250-micron) | 3 |
| 11 | Earthing kit (Earth Chemical) | 10kg Earthing chemical fill | 1 |
| 12 | Earthing kit (Earth Chamber) | 350 mm dia FRP Earth pit chamber with cover | 3 |
| 13 | Earthing cables (For Module, DCDB, ACDB & Inverters) | 1C, 6 Sqmm Cu. Flexible cable, Green (For Modules-to-Modules Earthing) | 40 |
| 14 | Lug | 6 Sqmm Cu. Ring type lug | 26 |
| 15 | Nutbolts for M-M | SS 304 Bolt nut for mod-mod M4x20 (B+N+2PL+1 Serrated Washer) | 25 |
| 16 | Cable Tie – Nylon | UV protected Cable Ties-250mm, UL Listed UV Resistant Nylon Cable Ties | 1 |
| 17 | Cable Tie – SS | UV protected Cable Ties-300mm, SS Cable Ties – Fire Proof, UV Resistant and Halogen Free Cable ties, SS304, Self Locking, highly chemical and corrosion resistant. | 1 |
| 18 | PU foam bottle 450ml | PU foam bottle 450ml | 1 |
| 19 | Insulation Tape | Insulation Tape for 1 phase (Red-1, Black-1, Green-1) | 1 |
| 20 | DC Cable Dressing Clips (SS 316 without sharp edges) | DC Cable Dressing Clips (SS 316 without sharp edges) | 8 |
